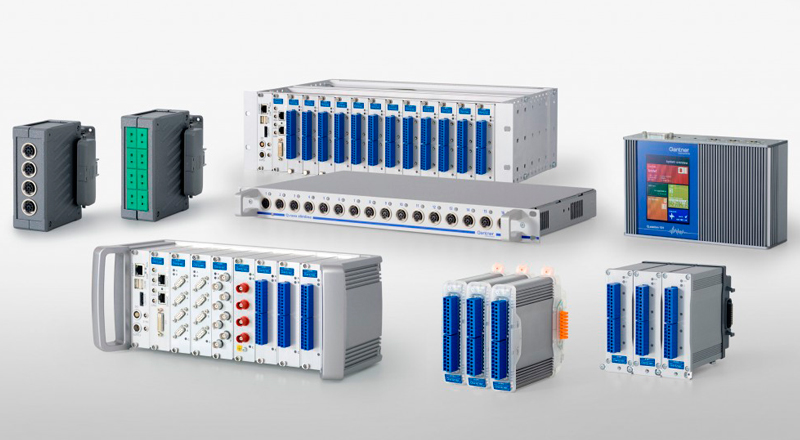

DATA ACQUISITION SYSTEMS
Gantner’s modular and scalable Q.series X data acquisition hardware provides accurate signal conditioning for a wide range of sensor types, supporting conventional electrical sensors and fiber optic sensors.
The capabilities of the Q.series X extend far beyond the norm; features such as intelligent data filtering, data reduction algorithms, IIoT and real-time control for automation make the Q.series X the most versatile data acquisition system available on the market.

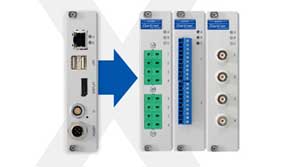

HIGH PERFORMANCEHIGH FLEXIBILITY: USE DIFFERENT INTERFACES WITH THE SAME MEASUREMENT MODULE
Connect to Ethernet, CAN, ProfiNet with test.controller Q.station X:
Hasta 20 registradores de datos
Up to 100kHz per channel
HIGH PERFORMANCEHIGH FLEXIBILITY: USE DIFFERENT INTERFACES WITH THE SAME MEASUREMENT MODULE

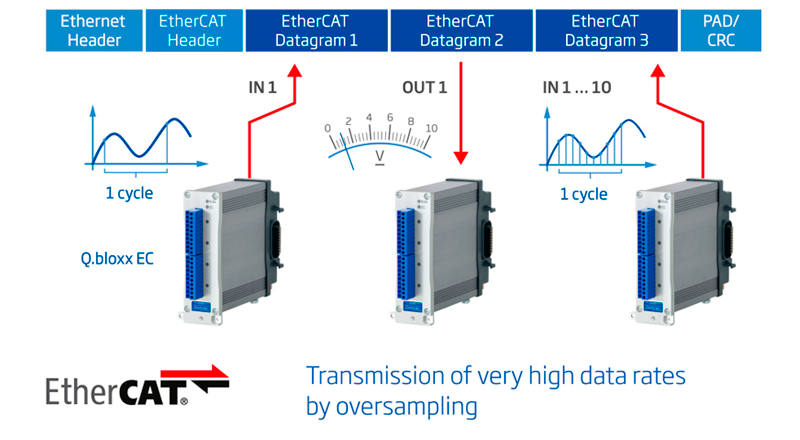

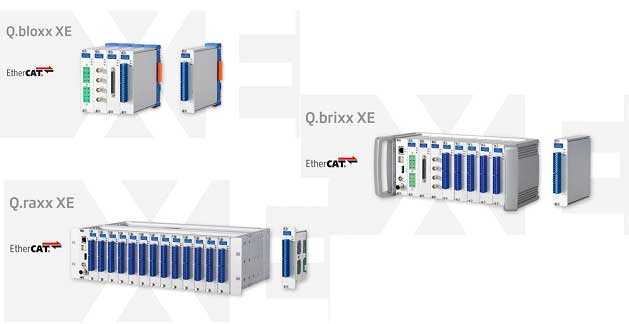

Connect to EtherCAT with BUS Coupler:
Full EtherCAT functionality as XFC
10 kHz real read and write
DEDICATED MODULES:
8 ¼, ½ and full bridge gauges
16 ¼ bridge gauges
8 thermocouples
8 voltage or current
HIGH INSULATION MODULES:
1200VDC isolation
Inputs for voltage, current, thermocouples, Pt100, NTC, IEPE, ½ gauge and full bridge.
MULTI-PURPOSE MODULES:
2 or 4 inputs for most sensors
Gauge module with DC and CF excitation
DIGITAL MODULES:
Frequency and PWM inputs and outputs
Quadrature and up/down counter
Specials such as missing teeth detection and chrono method
MAIN AREAS OF APPLICATION
APPLICATIONS OF DATA ACQUISITION SYSTEMS
Automotive and transportation
Aerospace
Energy
Civil Engineering
Industry
HIGH QUALITY DATA ACQUISITION
Systems characterized by high accuracy, fail-safe operation, high resistance to temperature and EMC influences and a robust design for extreme environments.

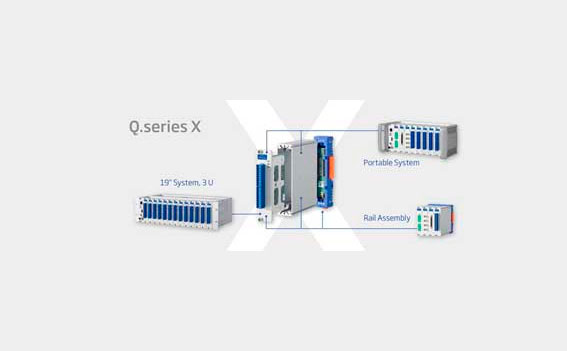

SISTEMA DE MEDICIÓN DISTRIBUIDO Y FLEXIBLE / PORTÁTIL Y COMPACTO / MULTICANAL
Sistemas de adquisición de datos y acondicionamiento de señal enfocados en múltiples sectores de actividad y que se adaptan a las necesidades de cada aplicación. Distributed systems, centralized data acquisition, stand-alone PC independent systems, measurements in industrial environments and with industry standard communication protocols, etc. Flexibility in data acquisition.
The software associated with each system allows quick and easy configuration of the data acquisition process, being able to view and store data online so that they can be accessed from various remote locations. Powerful and simple software tools for the complete design of your application: Measurement - Conditioning - Control - Monitoring - Analysis.
PORTABLE DAQ SYSTEMS
They encompass all the features of distributed systems and incorporate it in a rugged aluminum housing, making it a portable and robust system.
DISTRIBUTED DAQ SYSTEMS
Distributed measurement systems easily configurable with Q.bloxx modules, connected to each other by high-speed RS-485 interfaces.
HIGH PERFORMANCE OF DAQ SYSTEMS
High performance and flexibility, being really easy to use and providing reliable and accurate data for further analysis.
